Circular layout is described in the section called “Circular Layout”.

Figure 5.14. Sample circular layouts

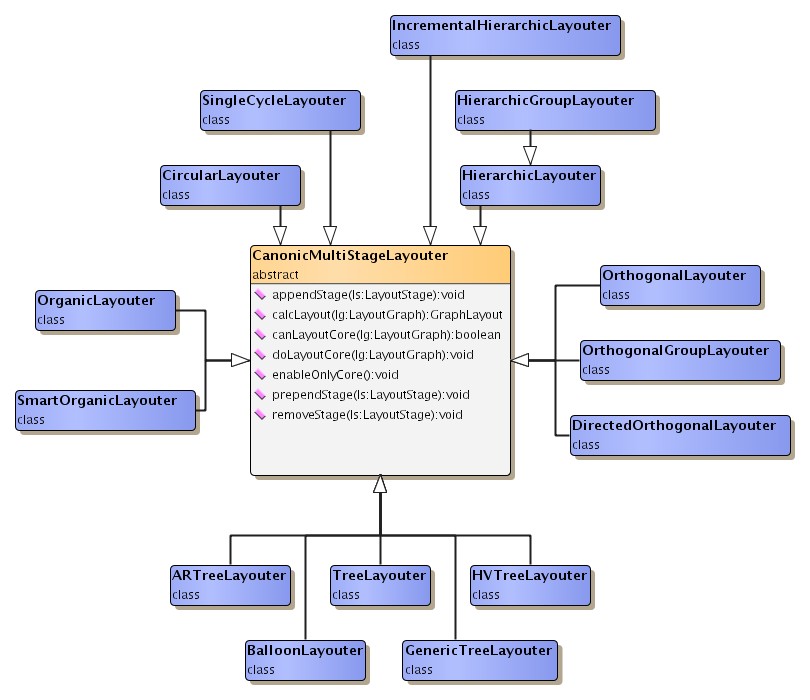

Encapsulated in class CircularLayouter and class SingleCycleLayouter.

The hierarchical layout style is described in the section called “Hierarchical Layout Style”.

Figure 5.15. Sample hierarchical layouts

Hierarchical layout...	...of grouped graph.

Encapsulated in class IncrementalHierarchicLayouter.

The organic layout style is described in the section called “Organic Layout Style”. The description of interactive organic layout can be found in the section called “Interactive Organic Layout”.

Figure 5.16. Sample organic layouts

Organic layout.	Grouped organic layout.

Encapsulated in the class SmartOrganicLayouter. Class InteractiveOrganicLayouter encapsulates the interactive variant of organic layout.

Plain orthogonal layout is described in the section called “Orthogonal Layout”, the modification thereof that supports grouped graphs in the section called “Orthogonal Layout of Grouped Graphs”. Special support for UML-style layout is provided by the orthogonal layout variant found in the section called “Directed Orthogonal Layout”.

Figure 5.17. Sample orthogonal layouts

Orthogonal layout.	Grouped orthogonal layout.

Encapsulated in class OrthogonalLayouter and OrthogonalGroupLayouter. Class DirectedOrthogonalLayouter encapsulates UML-style orthogonal layout.

Tree layout is described in the section called “Tree Layout”.

Figure 5.18. Sample tree layouts

Directed	Balloon	Horizontal/Vertical	Compact

Encapsulated in the classes TreeLayouter, BalloonLayouter, HVTreeLayouter, and ARTreeLayouter. Also, class GenericTreeLayouter encapsulates tree layout, too. The generic tree layout algorithm is described in the section called “Generic Tree Layout”.

Figure 5.19. Sample tree layouts (continued)

Generic Tree Layout
